High level requirement

Imagine you are tasked to design an API gateway to rate limit your exposed public API’s.

First thoughts

Consider this as an algorithm question, How would you even design a rate limiter?
What would be the input and output to such an algorithm?
If you even have a rate limiter then how are we going to test it’s performance on load?
What are the different policies used in rate limiters?

Learnings

Interface

Let’s first design the basic interface of a rate limiter

public abstract class RateLimiter {

  protected final int maxRequestPerSec;

  protected RateLimiter(int maxRequestPerSec) {
    this.maxRequestPerSec = maxRequestPerSec;
  }

  abstract boolean allow();
}

We have an abstract class called RateLimiter which taken in the maximum allowed hit rate as it’s constructor parameter.
We have a method interface called allow() that returns a boolean which tells the caller whether this request is allowed or dropped by the gateway

Testing

Assume you have a rate limiter implemented and given to you, what sort of testing framework would you use to evaluate its performance ?

Here is one way below

public class Solution {

    public static void sendRequest(RateLimiter rl, int totalRequests, int requestRate) {

        long startTime = System.currentTimeMillis();
        CountDownLatch cdl = new CountDownLatch(totalRequests);

        for(int i=0; i<totalRequests; i++) {
            new Thread(() -> {
                while(!rl.allow()) {
                    try{
                        Thread.sleep(10);
                    } catch(InterruptedException ie) {
                        throw new RuntimeException(ie);
                    }
                }
                cdl.countDown();
            }).start();

            try{
                Thread.sleep(1000/requestRate);
            } catch(InterruptedException ie) {
                throw new RuntimeException(ie);
            }
        }

        try{
            cdl.await();
        } catch(InterruptedException ie) {
            throw new RuntimeException(ie);
        }


        double duration = (System.currentTimeMillis() - startTime) / 1000.0;
        System.out.println(totalRequests + " requests processed in " + duration + " seconds. " + "Rate: " + (double) totalRequests / duration + " per second");

    }

    public static void main (String[] args) throws java.lang.Exception
    {
        // your code goes here
        RateLimiter rl = new ImplementationBasedRateLimiter(20);
        Thread thread = new Thread(() -> {
                sendRequest(rl, 10, 1);
                sendRequest(rl, 20, 2);
                sendRequest(rl, 50, 5);
                sendRequest(rl, 100, 10);
                sendRequest(rl, 200, 20);
                sendRequest(rl, 250, 25);
                sendRequest(rl, 500, 50);
                sendRequest(rl, 1000, 100);
            });

        thread.start();
        thread.join();
    }
}

Ok, there is a lot of things going on here. Let me disect them and explain one by one.

Let’s look at the main function

First the main function initializes a rate limiter
Second, the main function prepares a batch of tests.
Each sendRequest() method is a test.
It takes in the rateLimiter as first argument,total number of requests as second argument, the request rate(requests per second) as the third argument

Now let’s look at each sendRequest() test

The objective of this method is to launch totalRequests number of requests against the rate limiter at the request rate pace.
To do that we can send each request after a time interval of (1000/requestRate) milliseconds. Simple math :)
This is achieved by iterating over a for loop and waiting for (1000/requestRate) milliseconds after every iteration
In each iteration, if we simply launch a new thread that checks for the rate limiters allow() method to be true just once, then we are not replicating real testing scenario.
In each iteration, the thread launched has to keep trying the allow() method of the rate limiter untill it returns true.
Hence we use a while loop in the launched thread of each iteration
Now, is that enough. Nope, because the main thread needs to wait till all the threads have finished execution.
Best way to ensure that is to use a CountDownLatch and let the main thread wait till all the threads have decremented the latch to zero.
The remaining part is simply measuring execution metrics and printing to the console.

Implementations

Below are top implementations of algorithms of rate limiter abstract class

Credits

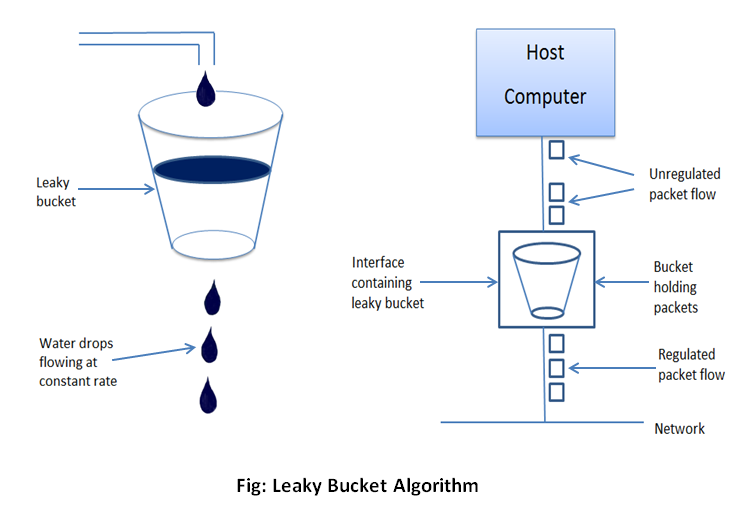

Leaky Bucket Algorithm

Algorithm

In this algorithm, we have a bucket of limited capacity.

The bucket takes in requests and churns out responses

If the capacity of the bucket is full, then the future incoming requests will simply be denied

Implementation below

public static class LeakyBucketRateLimiter extends RateLimiter {

    private long nextAllowedTime;

    private final long TIME_INTERVAL_BETWEEN_REQUESTS;

    public LeakyBucketRateLimiter(int maxRequestPerSecond) {
        super(maxRequestPerSecond);
        TIME_INTERVAL_BETWEEN_REQUESTS = 1000/maxRequestPerSecond;
        nextAllowedTime = System.currentTimeMillis();
    }

    public boolean allow() {
        long currentTime = System.currentTimeMillis();
        synchronized(this) {
            if(currentTime>=nextAllowedTime) {
                nextAllowedTime = currentTime + TIME_INTERVAL_BETWEEN_REQUESTS;
                return true;
            }

            return false;
        }
    }
}

Maintain two variables nextAllowedTime and TIME_INTERVAL_BETWEEN_REQUESTS.
TIME_INTERVAL_BETWEEN_REQUESTS = 1000/maxRequestPerSecond. Simple Math :)
Check if the current time is greater than next allowed time, if it is then allow the request or else reject it
Keep updating next allowed time

Token Bucket Algorithm

Assign a token to every request received.

If there is an incoming request and there are no more tokens to give out then drop the request.

public static class TokenBucketRateLimiter extends RateLimiter {

    private int numberOfTokens;

    public TokenBucketRateLimiter(int maxRequestPerSecond) {
        super(maxRequestPerSecond);
        numberOfTokens = maxRequestPerSecond;
        new Thread(() -> {
            while(true) {
                try{
                    TimeUnit.SECONDS.sleep(1);
                } catch(InterruptedException ie) {
                    throw new RuntimeException(ie);
                }
                refill(numberOfTokens);
            }
        }).start();
    }

    public boolean allow() {
        synchronized(this) {
            if(numberOfTokens>0) {
                numberOfTokens--;
                return true;
            }
            return false;
        }
    }

    private void refill(int cnt) {
        synchronized(this) {
            numberOfTokens = Math.min(numberOfTokens + cnt, this.maxRequestPerSecond);
            notifyAll();
        }
    }
}

Let numberOfTokens variable denote the current number of tokens in the bucket
Each token in numberOfTokens is assigned to a request
We need a background thread to keep refilling the bucket, so that maxRequestsPerSecond number of tokens are available in the bucket every second
refill() function takes in the number of tokens to refill the bucket with
allow() is implemented by checking if there are any tokens available to be handed out to the caller.

Fixed Window Algorithm

We slice the timeline from 0 to infinity into small time intervals of 60 seconds each

We make sure that in each interval, the number of requests do not exceed the total allowed number of requests in that interval

Implementation below

public static class FixedWindowCounterRateLimiter extends RateLimiter {

    private final ConcurrentMap<Long, AtomicInteger> windowMap;

    public FixedWindowCounterRateLimiter(int maxRequestPerSecond) {
        super(maxRequestPerSecond);
        this.windowMap = new ConcurrentHashMap();
    }

    public boolean allow() {
        long currentTimeInMillis = System.currentTimeMillis();
        long windowIndex = currentTimeInMillis/(60*1000);
        windowMap.putIfAbsent(windowIndex, new AtomicInteger(0));
        return windowMap.get(windowIndex).incrementAndGet() <= this.maxRequestPerSecond;
    }
}

We first create a map whose key is the time interval index and value is the number of requests in that window
In the allow method we first get the time interval index and check for that time interval whether we have requests remaining.
Then we atomically increment the value before sending out the result;

Sliding Window Log algorithm

In this algorithm, we move the window used in the previous algorithm with us in real time.

So if we receive a request, we make sure that in the time window [current-time - 60, current-time] we have not exceeded the limit on the number of requests

Implementation below

public static class SlidingLogRateLimiter extends RateLimiter {

    private final Queue<Long> q;

    public SlidingLogRateLimiter(int maxRequestPerSecond) {
        super(maxRequestPerSecond);
        q = new LinkedList();
    }

    public boolean allow() {
        long currentTime = System.currentTimeMillis();
        long boundary = currentTime - 60;
        synchronized(this) {
            while(!q.isEmpty() && q.peek()<boundary) {
                q.remove();
            }

            q.add(currentTime);

            if(q.size() <= maxRequestPerSecond) {
                return true;
            }
            return false;
        }
    }
}

We maintain a Queue of all the incoming request timestamps
The allow() method take the current time and clears all the requests that arrive before (currentTime - 60)
Finally it adds the current request time to the queue and checks whether the queue’s size is lesser than the maximum requests per second

Sliding Window Rate Limiting Algorithm

This is very similar to the previous approach.

Instead of including each timestamp in the previous window, we simply maintain the previous windows request count.

When the window moves 25% away from previous window, then we include 75% of the previous window count along with the requests we found so far to the total request count.

Implementation below

public static class SlidingWindowRateLimiter extends RateLimiter {

    private final ConcurrentMap<Long, AtomicInteger> windowMap;

    public SlidingWindowRateLimiter(int maxRequestPerSecond) {
        super(maxRequestPerSecond);
        this.windowMap = new ConcurrentHashMap();
    }

    public boolean allow() {
        long currentTime = System.currentTimeMillis();
        long currentWindowKey = currentTime / (1000*1000);

        windowMap.putIfAbsent(currentWindowKey, new AtomicInteger(0));


        long preWindowKey = currentWindowKey - 1000;
        AtomicInteger preCount = windowMap.get(preWindowKey);
        if(preCount == null) {
            return windowMap.get(currentWindowKey).incrementAndGet() <= this.maxRequestPerSecond;
        }

        double preWeight = 1 - (currentTime - currentWindowKey) / 1000.0;
        long count = (long) (preCount.get() * preWeight + windowMap.get(currentWindowKey).incrementAndGet());
        return count <= maxRequestPerSecond;
    }
}

Maintain a map of window index as key and number of requests as value
When the allow() method is called we first retrieve the window index from current time.
We then retrieve the previous window key and the previous window count
Then we determine how far into the current window we are, using which we determine the weights
We then use the weights to get the weighted count and check if its below the allowed limit
